Introducing the RAVN M: Modern Scandinavian Design in a Compact Footprint

Experience the ultimate in outdoor relaxation with the RAVN M. Based on a modern, box-style architecture, the RAVN M is a refined evolution of the classic outdoor sauna. Designed comfortably for 3–4 bathers, this Scandinavian-crafted retreat blends a clean, contemporary silhouette with exceptional functionality—ideal for modern backyards and urban outdoor spaces.

Premium Construction & Materials

The RAVN M is engineered for durability, efficiency, and timeless aesthetics. Made from Scandinavian Thermowood®.

Thermowood Construction - Thermowood is created by heat treating Scandinavian softwood to temperatures ranging from 180 – 230° in special chamber kilns for up to 96 hours. Steam is used as a protective gas and helps to prevent the wood from splitting and becoming damaged during treatment.

Learn more about thermowood in our FAQ section!

Thermowood’s Characteristics & Qualities -This process causes chemical and structural changes to occur within the timber, which therefore alters some of its characteristics and qualities. Some of the characteristics and qualities that make Thermowood such a popular specie includes:

Dimensionally Stable – The intensive heat the wood is exposed to during its production dries out deep into the core, causing all moisture and resin to be removed from the timber. Thermowood therefore doesn’t react to changes in humidity as drastically as untreated wood (the risk of swelling, cracking and shrinkage is decreased), allowing it to retain its shape far better. The wood also doesn’t secrete sap or resin even in high temperatures.

Environemntally Friendly – The softwood used to produce Thermowood originates from well-managed, PEFC-certified forests, and as no chemicals or foreign substances are involved during its production, Thermowood is an environmentally friendly material produced by using only natural methods.

Resistance to Rot and Fungi – Due to the heating process breaking down hemicellulose, the wood doesn’t contain the appropriate nutrients to allow rot and fungi to grow and develop.

Increased Longevity – When wood is treated with heat, its average life span is prolonged meaning your sauna will last a lifetime!

Improved Insulation – Wood that has been heat treated is much more porous than untreated wood, vastly improving its insulating properties.

Robust Wall Construction: Built with 42 mm (1.65") thick solid wood walls for excellent heat retention and long-term structural stability.
Durable Roofing: The roof is finished with PVC/EPDM roofing for reliable weather protection. Roofing is offered as an add-on, or you may apply your own custom waterproofing solution.

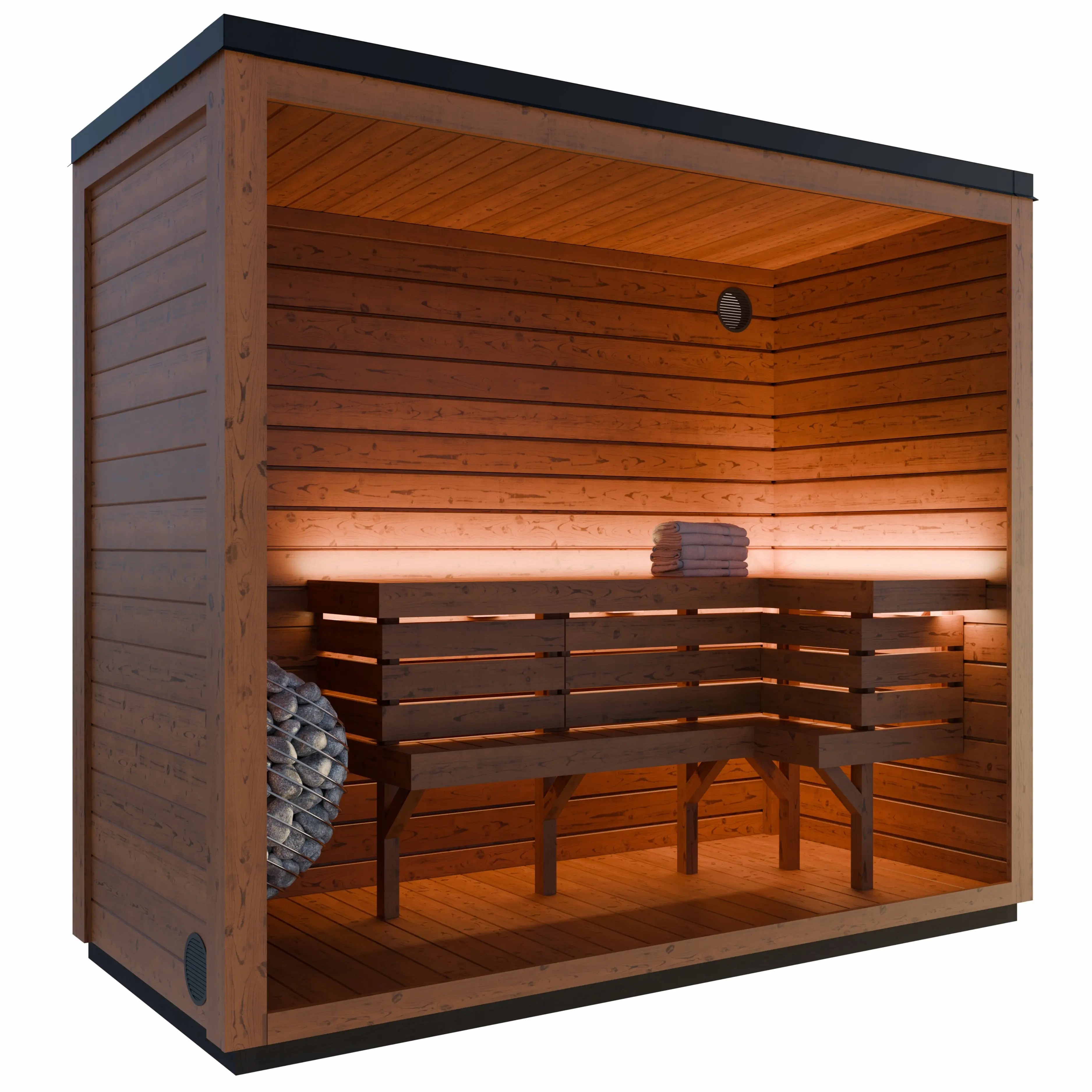

Ergonomic Interior & Spacious Feel

Despite its efficient footprint, the RAVN M offers an internal volume of approximately ~4.0 m³ (~141 ft³). The interior layout is optimized for comfort with multi-level benching that allows bathers to enjoy varying heat zones:

Upper Bench: 450 mm (17.7") depth for full-body relaxation.
Lower Step: Convenient lower step access the upper bench.
Tempered Glass Front: Large glazed front with a tempered glass door (192 cm × 69 cm / 75.6" × 27.2") brings in natural light while maintaining heat efficiency.

Optimized Dimensions for Any Space

The RAVN M is designed to deliver a true sauna experience while maintaining a compact, space-conscious footprint.

Interior Dimensions:

Width: 2422 mm (95.4")
Depth: 1105 mm (43.5")
Height: 2135 mm (74.6")

Easy Assembly & Logistics

The RAVN M is supplied as a complete DIY sauna kit, designed for efficient transport and straightforward assembly.

Net Weight: Approximately ~550 kg (~1,210 lbs).
Packaging Dimensions: Delivered in a compact package measuring 2350 × 1200 × 750 mm (92.5" × 47.2" × 29.5") for manageable shipping and handling.

Technical Specifications Summary

Model Name	RAVN M
Capacity	3–4 Persons
External Dimensions	2422 mm × 1105 mm × 2135 mm (95.4" × 43.5" × 84.1")
Wall Thickness	42 mm (1.65")
Interior Volume	~4.0 m³ (~141 ft³)
Door Dimensions	192 × 69 cm (75.6" × 27.2")
Roof Material	PVC / EPDM
Weight	~550 kg (~1,210 lbs)

The RAVN M is more than just a sauna—it’s a modern Scandinavian retreat designed for everyday use. Reserve yours today.
